Hydraulic systems are widely used in various industries, from construction machinery, marine equipment to automobile manufacturing. With its efficient, reliable and powerful power transmission capabilities, hydraulic systems have become an indispensable part of modern industry. In hydraulic systems, hydraulic cylinders are one of the most core components, and welded hydraulic cylinders have become one of the key factors in improving the efficiency of hydraulic systems due to their structural advantages and continuous advancement of manufacturing processes.

This article will explore the importance of welded hydraulic cylinders in hydraulic systems, analyze their working principles, application scenarios, and how to improve the overall efficiency of hydraulic systems through the optimized design of welded hydraulic cylinders.

1. Basic concepts and working principles of welded hydraulic cylinders

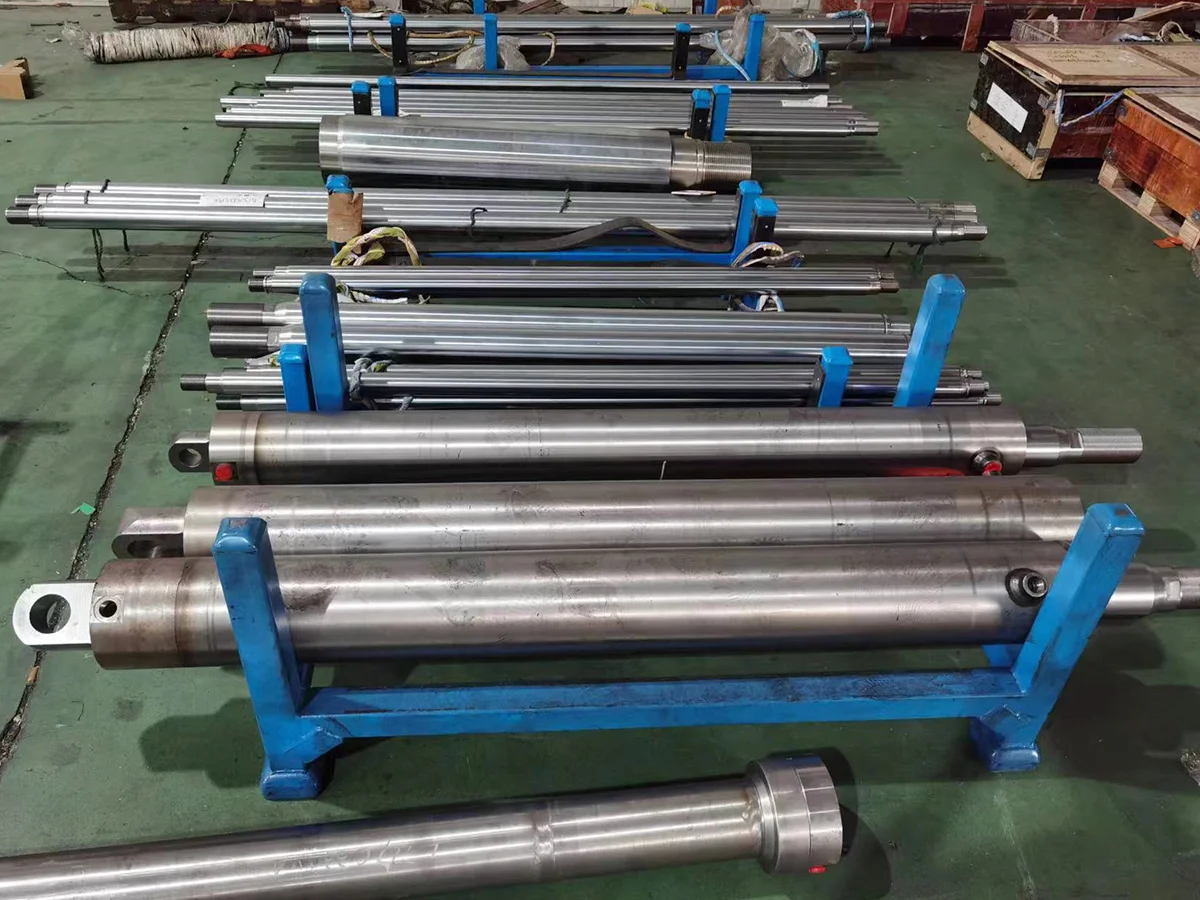

Welded hydraulic cylinders are usually composed of key components such as cylinder barrels, pistons, piston rods, end covers, and sealing rings. Its working principle is based on the pressure of hydraulic oil, which generates mechanical force through the push of the piston, thereby driving the movement of mechanical equipment. The design and manufacturing accuracy of hydraulic cylinders directly affect the working efficiency, stability and durability of hydraulic systems.

Compared with traditional cast hydraulic cylinders, welded hydraulic cylinders use a welding process, which allows the cylinder body to be welded from steel plates instead of casting or forging. The structure of the welded hydraulic cylinder is relatively simple, the manufacturing cost is low, and it has strong customizability. It can be designed and produced according to different working environments and performance requirements.

2. Advantages of welded hydraulic cylinders

High strength and durability: When designing welded hydraulic cylinders, high-strength steel or alloy materials are usually selected, and the strength of the cylinder structure is ensured by precision welding technology. Since the welding temperature and speed can be accurately controlled during the welding process, the flaws and defects that may occur during the casting process are avoided. The structure of the welded hydraulic cylinder is generally compact and can maintain stability under high pressure, thereby improving the efficiency of the hydraulic system.

Adapt to complex working environments: Welded hydraulic cylinders have strong adaptability and can play a stabilizing role in harsh working environments. Especially in high temperature, high pressure and corrosive environments, welded hydraulic cylinders can effectively improve their corrosion resistance and wear resistance by reasonably selecting materials and adding surface coatings. Therefore, welded hydraulic cylinders are widely used in high-strength and high-load hydraulic systems such as petroleum, mining, and marine engineering.

Improve the reliability of the hydraulic system: Since the cylinder body of the welded hydraulic cylinder has no casting seams, this reduces the cracks and pores that may occur during the casting process and enhances the sealing and reliability of the hydraulic cylinder. In high-pressure hydraulic systems, leakage and failure are one of the main factors affecting system efficiency, and welded hydraulic cylinders can effectively reduce these problems through strict quality control and excellent manufacturing processes.

Flexibility and Customization: Welded hydraulic cylinders can be flexibly designed and customized according to the needs of different applications. For example, under the requirements of higher pressure range and motion accuracy, appropriate welding processes and materials can be selected according to the design standards. This customization of welded hydraulic cylinders makes it widely applicable in different industries.

3. The role of welded hydraulic cylinders in hydraulic systems

Increasing the output power of hydraulic systems: The output power of hydraulic systems is determined by the pressure and flow of hydraulic oil. Through reasonable design, welded hydraulic cylinders can operate stably under higher working pressures, reduce energy loss, and ensure that the hydraulic system can stably output sufficient power. For example, in engineering machinery, welded hydraulic cylinders are often used in excavators, cranes, bulldozers and other equipment, which need to operate under high loads, and welded hydraulic cylinders can effectively withstand these pressures and ensure the efficient operation of the equipment.

Improve the response speed of hydraulic systems: The response speed of hydraulic systems is an important indicator to measure their performance, especially in application scenarios that require precise control. The response speed is crucial to the efficiency of the system. Due to its excellent sealing performance and small friction coefficient, the welded hydraulic cylinder enables the hydraulic oil to push the piston to move more quickly, thereby improving the response speed of the hydraulic system, shortening the operation cycle, and improving work efficiency.

Reduce energy loss and improve system efficiency: In hydraulic systems, energy loss often occurs in the sealing part of the hydraulic cylinder, especially in high-pressure systems, hydraulic oil leakage will lead to reduced system efficiency. The welded hydraulic cylinder ensures the sealing of the cylinder body through precise welding technology, thereby effectively reducing hydraulic oil leakage and energy loss, and improving the overall efficiency of the hydraulic system.

Reduce maintenance costs: Due to the strong sealing and durability of the welded hydraulic cylinder, the frequent failures caused by poor sealing, wear, leakage, etc. are reduced, so the maintenance cost and downtime of the hydraulic system can be greatly reduced. Especially in long-term hydraulic systems, welded hydraulic cylinders can effectively extend the service life of the system, reduce replacement frequency, and maintenance costs.

4. Optimization design and technical improvement of welded hydraulic cylinders

Material selection and innovation: Material is one of the key factors affecting the performance of welded hydraulic cylinders. With the continuous development of new materials, manufacturers of welded hydraulic cylinders can choose lighter, high-temperature resistant, corrosion-resistant high-strength alloy materials to further improve the performance of hydraulic cylinders. For example, the use of nickel-based alloys or highly corrosion-resistant steels can enable hydraulic cylinders to maintain excellent performance in extreme environments.

Improvement of surface treatment technology: By optimizing the surface treatment process of welded hydraulic cylinders, such as electroplating, spraying, or laser cladding, the wear resistance and corrosion resistance of hydraulic cylinders can be significantly improved. These surface treatment technologies help to increase the service life of hydraulic cylinders in high-pressure, high-temperature, and chemical environments, and further improve the overall efficiency of the system.

Intelligent and automated manufacturing: With the popularization of intelligent manufacturing technology, the design and production process of hydraulic cylinders are also constantly innovating. Through digital design and 3D printing technology, the manufacturing process of welded hydraulic cylinders has become more precise and efficient. At the same time, the application of automated production lines has further guaranteed the manufacturing quality of welded hydraulic cylinders, thereby improving the reliability and efficiency of hydraulic systems.

As a key component in the hydraulic system, welded hydraulic cylinders play a vital role in improving the efficiency of hydraulic systems through their high strength, reliability, and excellent working performance. With the development of technology, the design and manufacturing process of welded hydraulic cylinders have been continuously improved, which not only improves the working efficiency of the hydraulic system but also effectively reduces maintenance costs and extends the service life of the equipment. In the future, with the further advancement of material science and manufacturing technology, welded hydraulic cylinders will play a more important role and provide strong support for the efficient operation of hydraulic systems. Therefore, in the design and optimization of hydraulic systems, the selection and application of welded hydraulic cylinders is undoubtedly one of the keys to improving the overall system efficiency.
